Category :

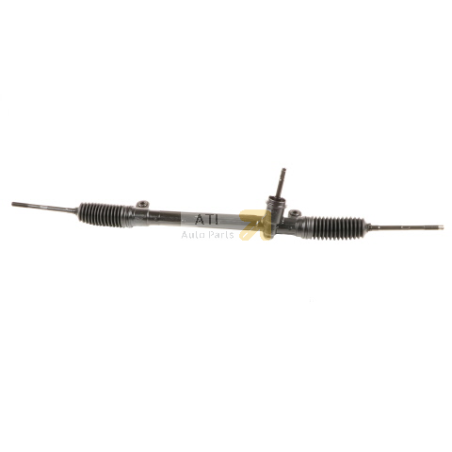

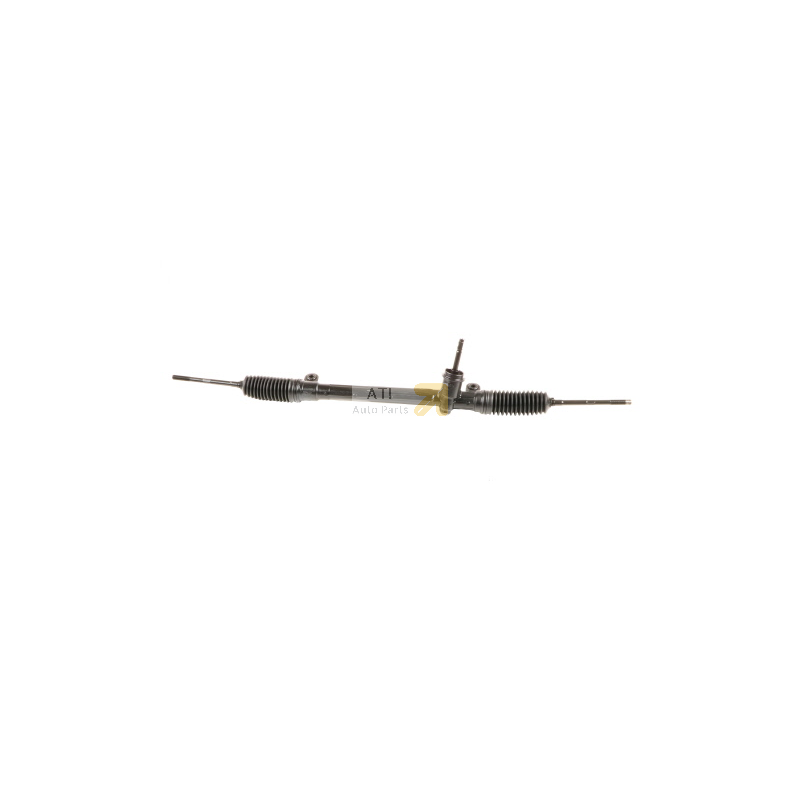

Mechanical steering rack
OPEL CORSA D
Ref : L811
Family :CR
Number of splines on the pinion : 27
Tie rod thread size (tie rod end side) : M14 X 1,5
Total length : 1165 mm
Observations : Without Sport chassis
Manufacturer : TRW
Thread length : 50 mm
Mounting hole diameter : 12 mm
Steering wheel position : Left-hand drive
Presence of servotronic : Without
Tie rod thread size (rack side) : M14 X 1,5
Splined pinion : Yes
INSTRUCTION MONTAGE
Rack travel : 142.0 mm
Lock to lock turns : 2.75 tr
Rack to housing distance at full lock : 70 mm
| BIELLETTES | GAUCHE | ATBI19114 |
|
| DROITE | ATBI19114 |
|
|
| KITS SOUFFLETS Crémaillères | DROITE | ST4286 |
|
| ST4286 |
|
Equivalence to manufacturer references
OPEL : 5900273
OPEL : 5900321
OPEL : 5900326
OPEL : 93168413
OPEL : 900037
OPEL : 900051
GENERAL MOTORS : 93196495
OPEL : 93189032
OPEL : 900091
GENERAL MOTORS : 93169493
GENERAL MOTORS : 93169495
OPEL : 93169495
OPEL : 900039
GENERAL MOTORS : 93193902
GENERAL MOTORS : 93193063
GENERAL MOTORS : 93167838
OPEL : 5900271
GENERAL MOTORS : 93167840
OPEL : 900036
OPEL : 5900275
OPEL : 900041
OPEL : 5900323
GENERAL MOTORS : 93189030
GENERAL MOTORS : 93168411
GENERAL MOTORS : 93168413
OPEL : 900092
OPEL : V613A500AA
OPEL : 55702974
