Category :

Transmission

Return

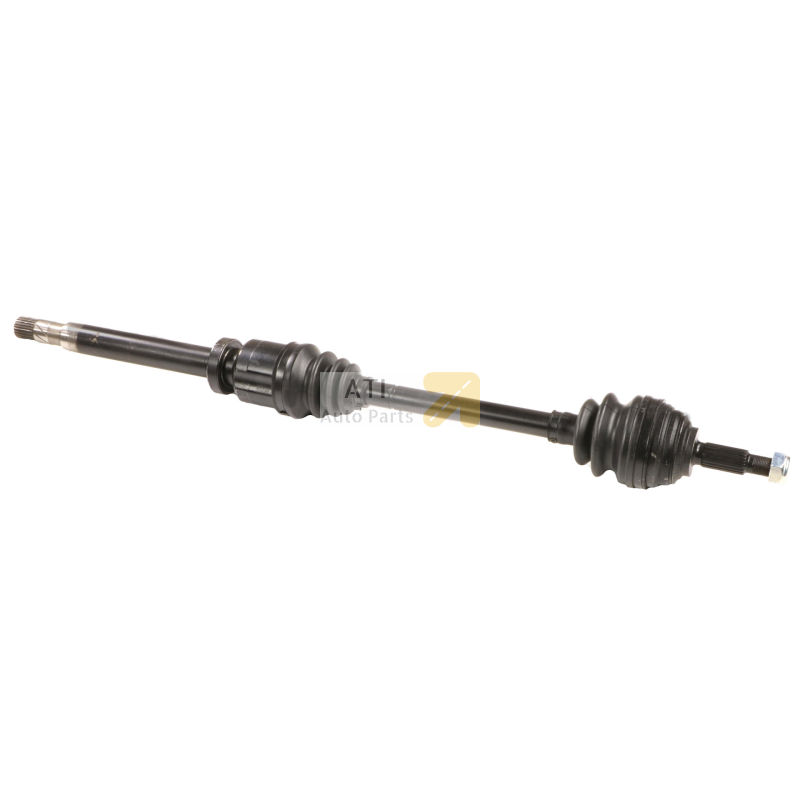

RENAULT TWINGO II D

Ref : 02310

Family :TR

Length of the shaft (including bearing unit)  : 275 mm

ABS on the vehicle  : Yes

Compressed length  : 862 mm

COTE BOITE

Length of the shaft (including bearing unit)  : 275 mm

Seal seat diameter  : 33 mm

Number of external splines  : 26

Length of the gearbox output without seal seat  : 63 mm

Diamètre des cannelures extérieures  : 26.5 mm

Diamètre du bol  : 69 mm

COTE ROUE

Shoulder diameter  : 49 mm

Type and position (snap ring/circlip)  : Internal snap ring

Outer spline diameter  : 25 mm

Housing diameter  : 81 mm

Nombre de cannelures extérieures  : 23

Number of splines on inner race  : 30

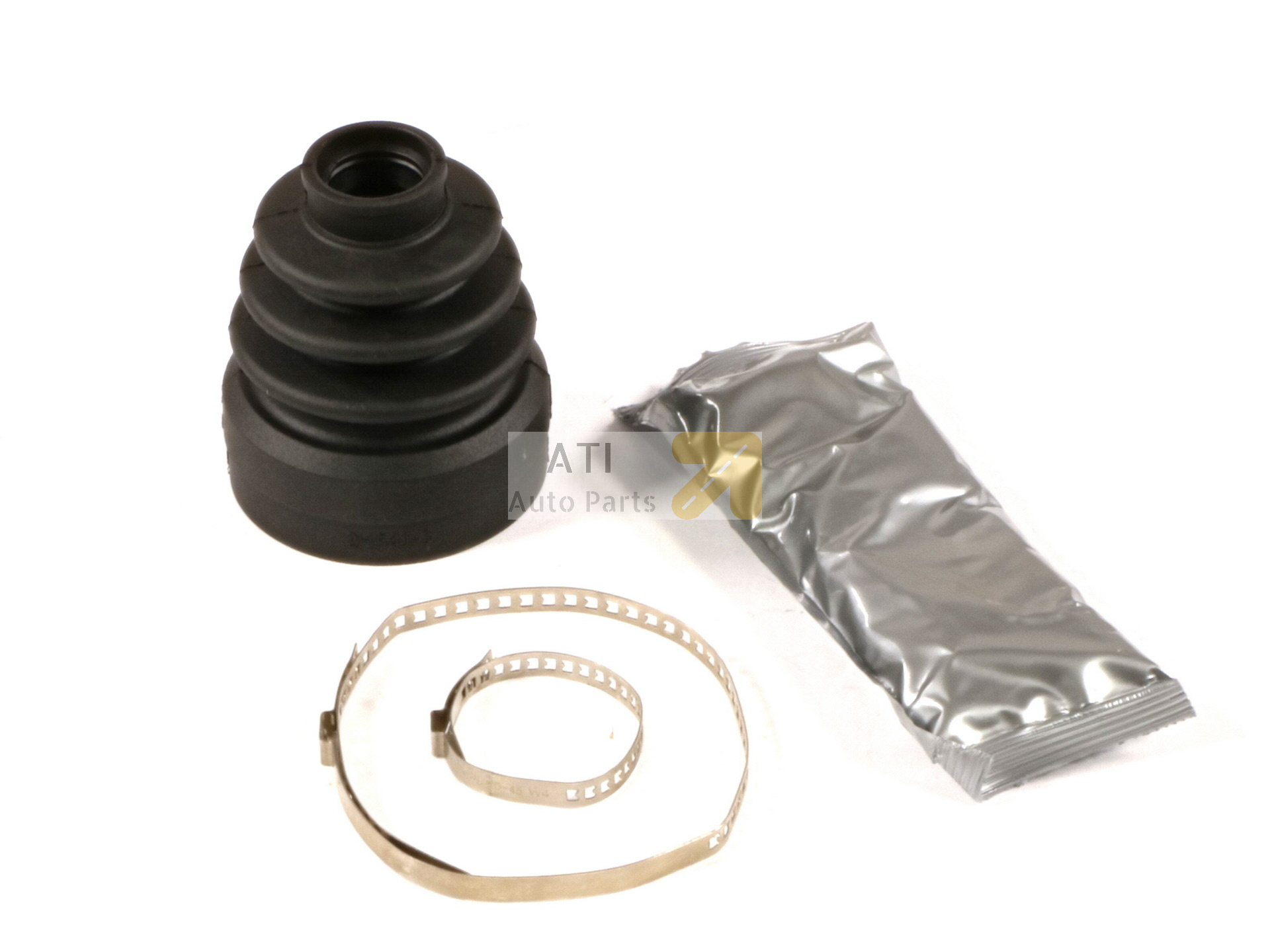

KITS ETANCHEITE TR neuf COTE ROUE ST3110 CITROEN/DACIA
S5016 OPEL
COTE BOITE S6151 RENAULT
S6192 CLIO III MEGANE III SUZUKI
FIXATION COTE ROUE ATEC005
JOINT HOMO Echange 22 COTE ROUE JHR29 JOINT HOMOCINETIQUE
ROULEMENT COTE BOITE RL018 ROULEMENT 6007
RL018 ROULEMENT 6007
TRIAXE COTE BOITE ATTRIR12
0 COTE BOITE

Equivalence to manufacturer references

  • RENAULT : 8200590370

  • RENAULT : 8201353446

  • RENAULT : 391004869R

  • RENAULT : 391009129R
