Category :

Transmission

Return

RENAULT/OPEL/NISSAN DCI ABS D

Ref : 23992

Family :TR

Compressed length  : 1140 mm

Length of the shaft (including bearing unit)  : 430 mm

ABS on the vehicle  : Yes

COTE BOITE

Length of the shaft (including bearing unit)  : 430 mm

Number of external splines  : 39

Outer spline diameter  : 29 mm

Diamètre du bol  : 81 mm

Seal seat diameter  : 30 mm

Length of the gearbox output without seal seat  : 105 mm

COTE ROUE

Housing diameter  : 101.5 mm

Shoulder diameter  : 67 mm

Type and position (snap ring/circlip)  : Internal snap ring

Nombre de cannelures extérieures  : 28

Number of splines on inner race  : 36

Diamètre des cannelures extérieures  : 30.5 mm

KITS ETANCHEITE TR neuf COTE ROUE ST3096 FORD
S5036 RENAULT UTILITAIRE

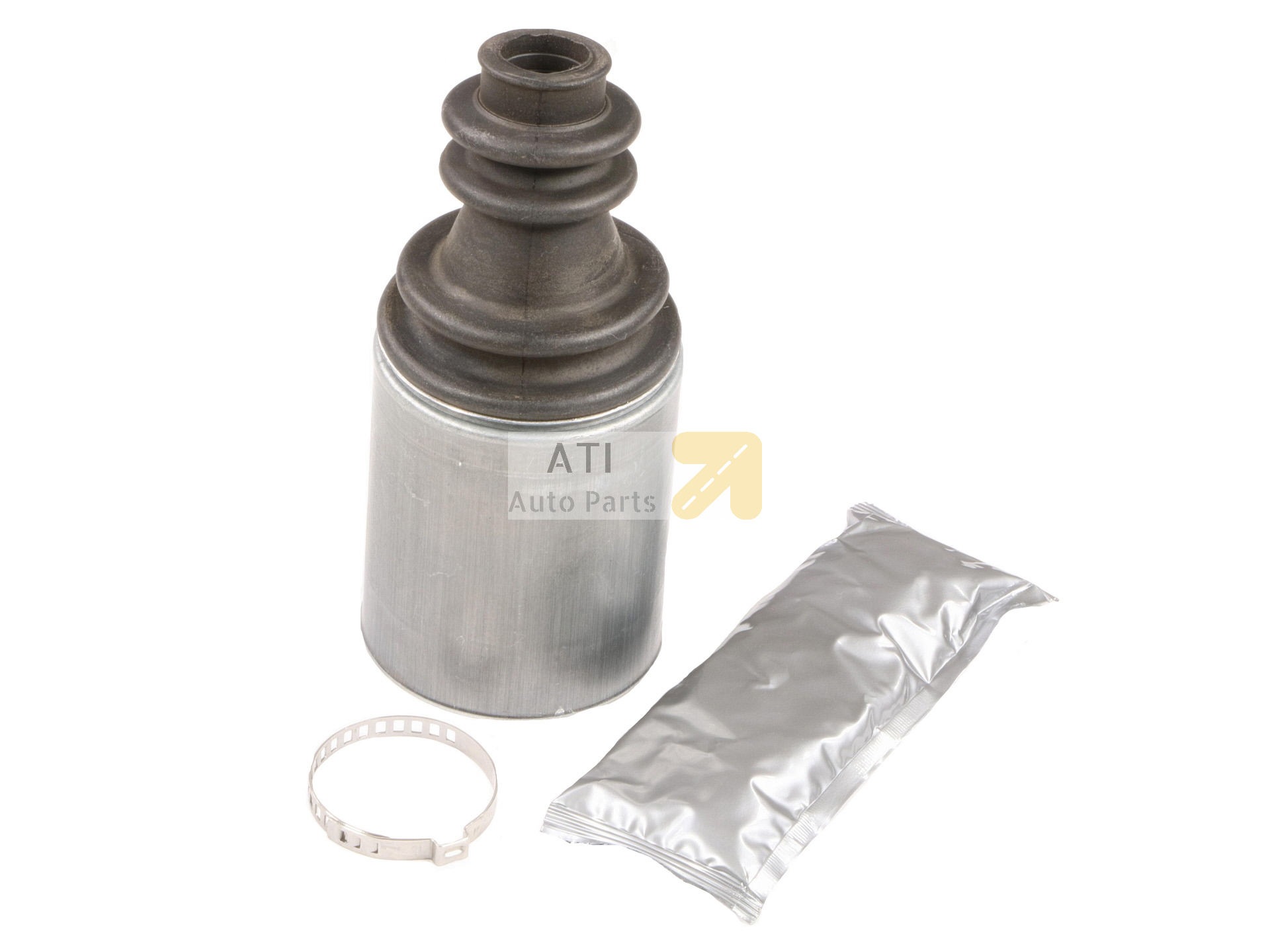

COTE BOITE S6050 HONDA
FIXATION COTE ROUE ATEC012

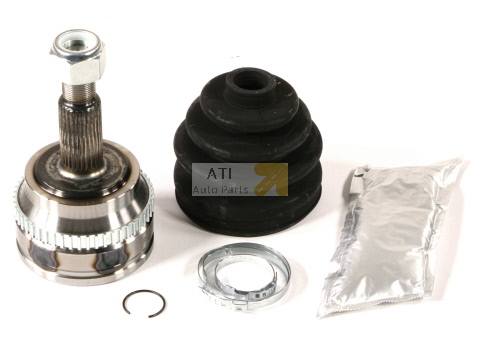

JOINT HOMO Echange 22 COTE ROUE JHR9851 JOINT HOMOCINETIQUE
TRIAXE COTE BOITE ATTRIR95
0 COTE BOITE

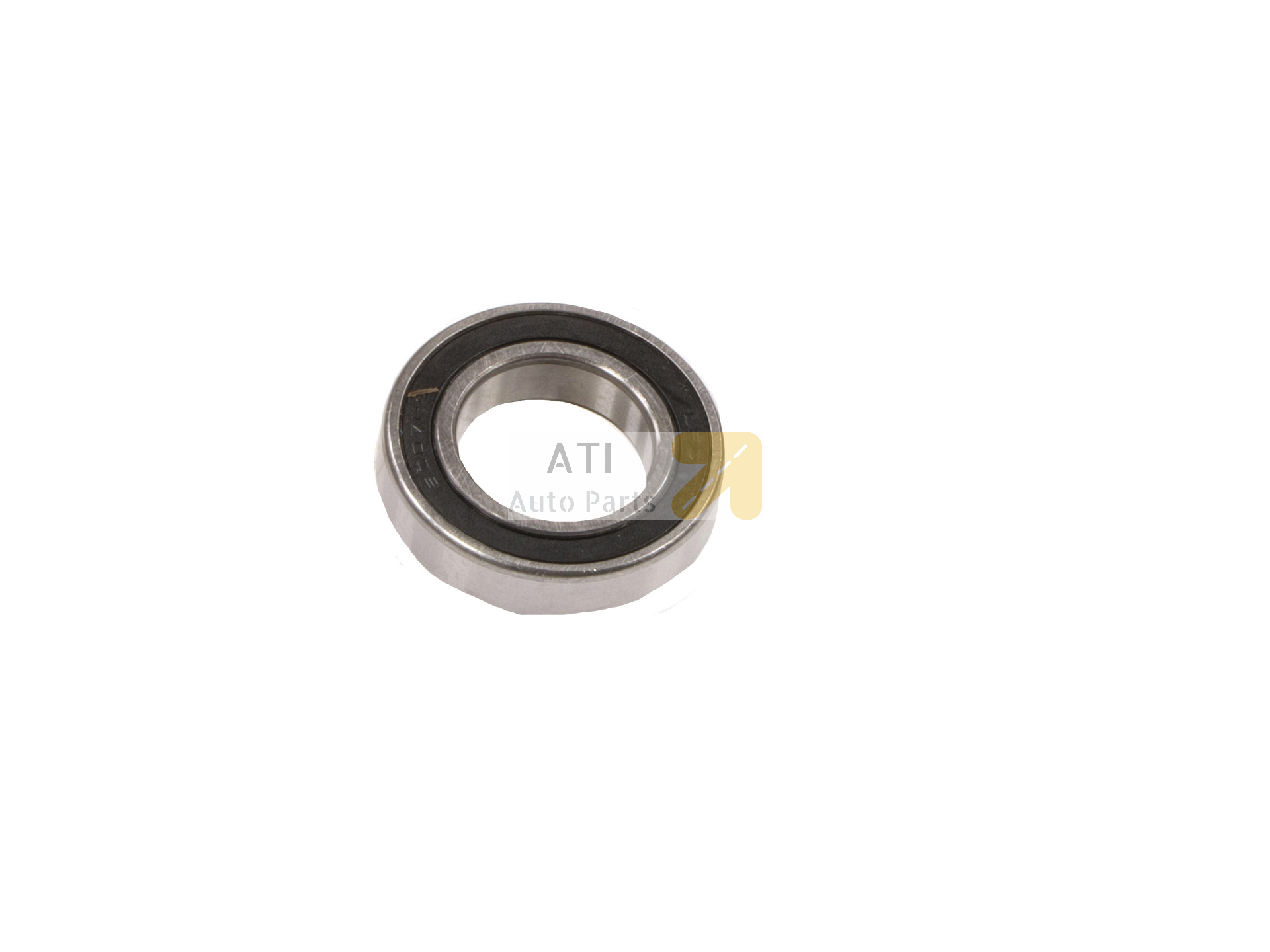

ROULEMENT COTE BOITE RL018 ROULEMENT 6007
COURONNE ABS COUH027

Equivalence to manufacturer references

  • RENAULT : 7711135283

  • RENAULT : 8200499895

  • RENAULT : 8200169288

  • NISSAN : 3910000Q0A

  • NISSAN : 3910000QAK
