Search by vehicle
Category :
Transmission

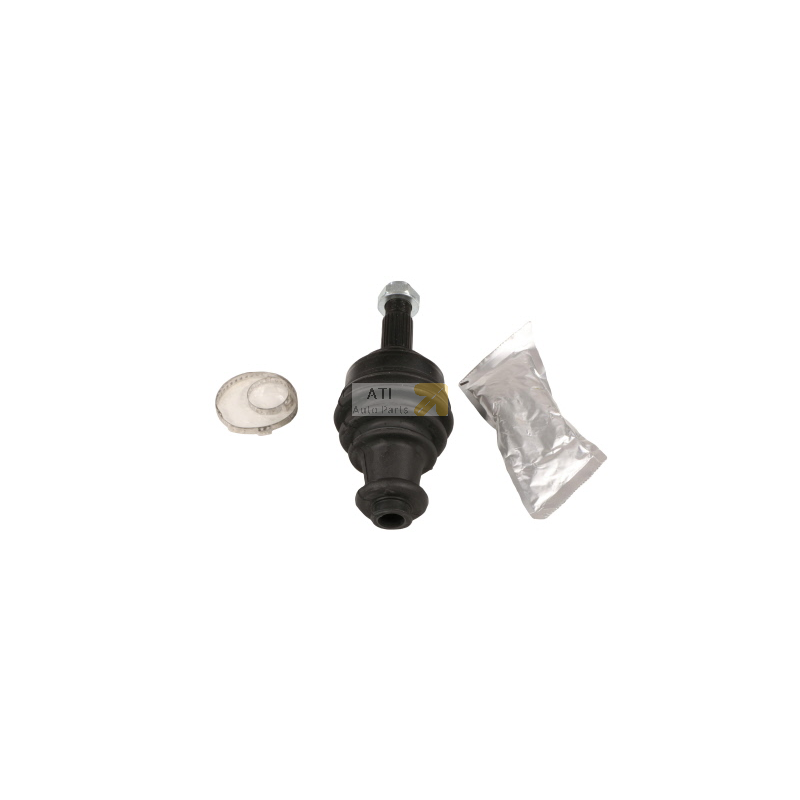

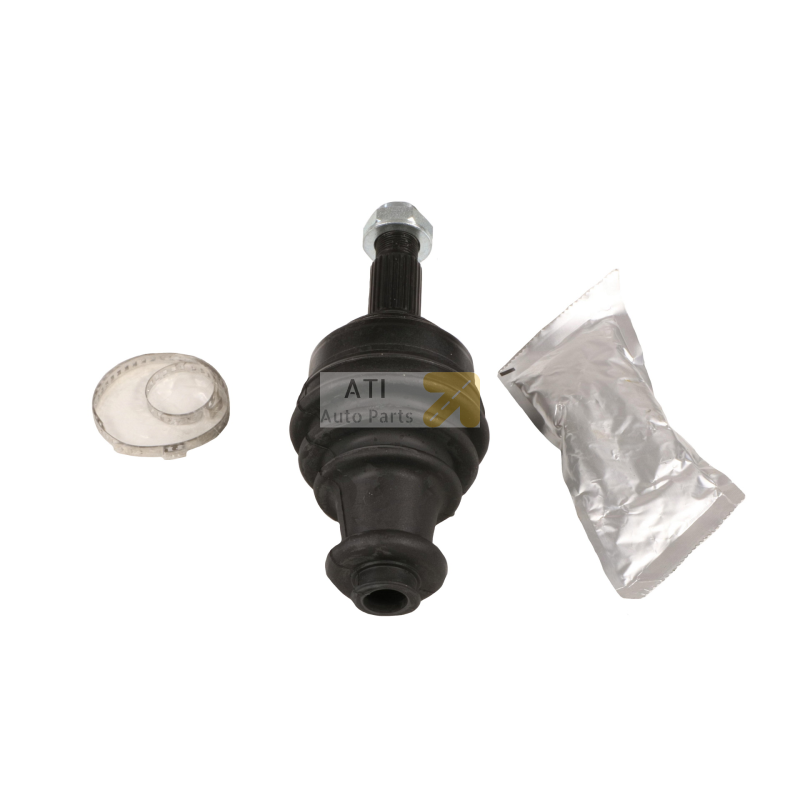

AUDI A4 1.8 1.9 TDI AUTO D
Ref : 32340
Family :TR
Compressed length : 585 mm
ABS on the vehicle : Yes
COTE ROUE
Outer spline diameter : 26.5 mm
Housing diameter : 88 mm
Shoulder diameter : 53 mm
Number of external splines : 33
Number of splines on inner race : 30
Type and position (snap ring/circlip) : Internal snap ring
COURONNE ABS COTE ROUE
Outer diameter : 81 mm
Inner diameter : 77 mm
Width : 11 mm
Number of teeth : 45
| KITS ETANCHEITE TR neuf | COTE ROUE | ST3002 |
|
| S5005 |
|
||
| COTE BOITE | S6056 |
|
|
| FIXATION | COTE ROUE | VIH005 |
|
| JOINT HOMO Echange 22 | COTE ROUE | JHA79 |
|
| COURONNE ABS | COUH033 |
|
Equivalence to manufacturer references
AUDI : 8D0407272DM
AUDI : 8D0407452DX
AUDI : 8D0407272AC
VOLKSWAGEN : 8D0407272AC
VOLKSWAGEN : 8D0407452DV
VOLKSWAGEN : 8D0407418H
VOLKSWAGEN : 8D0407272DK
VOLKSWAGEN : 8D0407272BE
SKODA : 8D0407452DV
SKODA : 8D0407418H
SKODA : 8D0407272DK
SKODA : 8D0407272BE
SEAT : 8D0407452DV
SEAT : 8D0407418H
SEAT : 8D0407272DK
SEAT : 8D0407272BE
AUDI : 8D0407452DV
AUDI : 8D0407418H
AUDI : 8D0407272DK
AUDI : 8D0407272BE
