Category :
Transmission

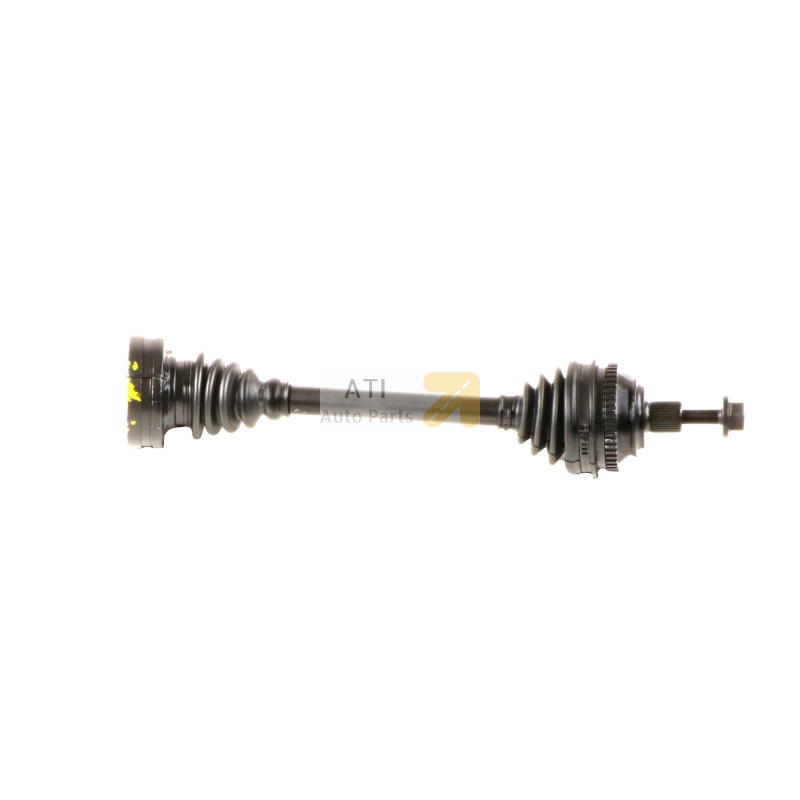

VW TRANSPORTER AV ABS G/D
Ref : 37272
Family :TR
ABS on the vehicle : Yes
Compressed length : 530 mm
Round flange diameter 1 : 108 mm
COTE ROUE
Housing diameter : 98 mm
Number of external splines : 38
Nombre de cannelures sur la noix : 33
Outer spline diameter : 31 mm
Shoulder diameter : 60 mm
Type and position (snap ring/circlip) : Internal snap ring
COTE BOITE
Observations : 6036 SANS CARTER
Number of splines on inner race : 33
Outer diameter (gearbox side) : 108 mm
| KITS ETANCHEITE TR neuf | COTE ROUE | S5026 |
|
| S5026 |
|
||
| S5026 |
|
||
| S5026 |
|
||
| COTE BOITE | S6036 |
|
|
| S6022 |
|
||
| S6022 |
|
||
| S6133 |
|
||
| S6133 |
|
||

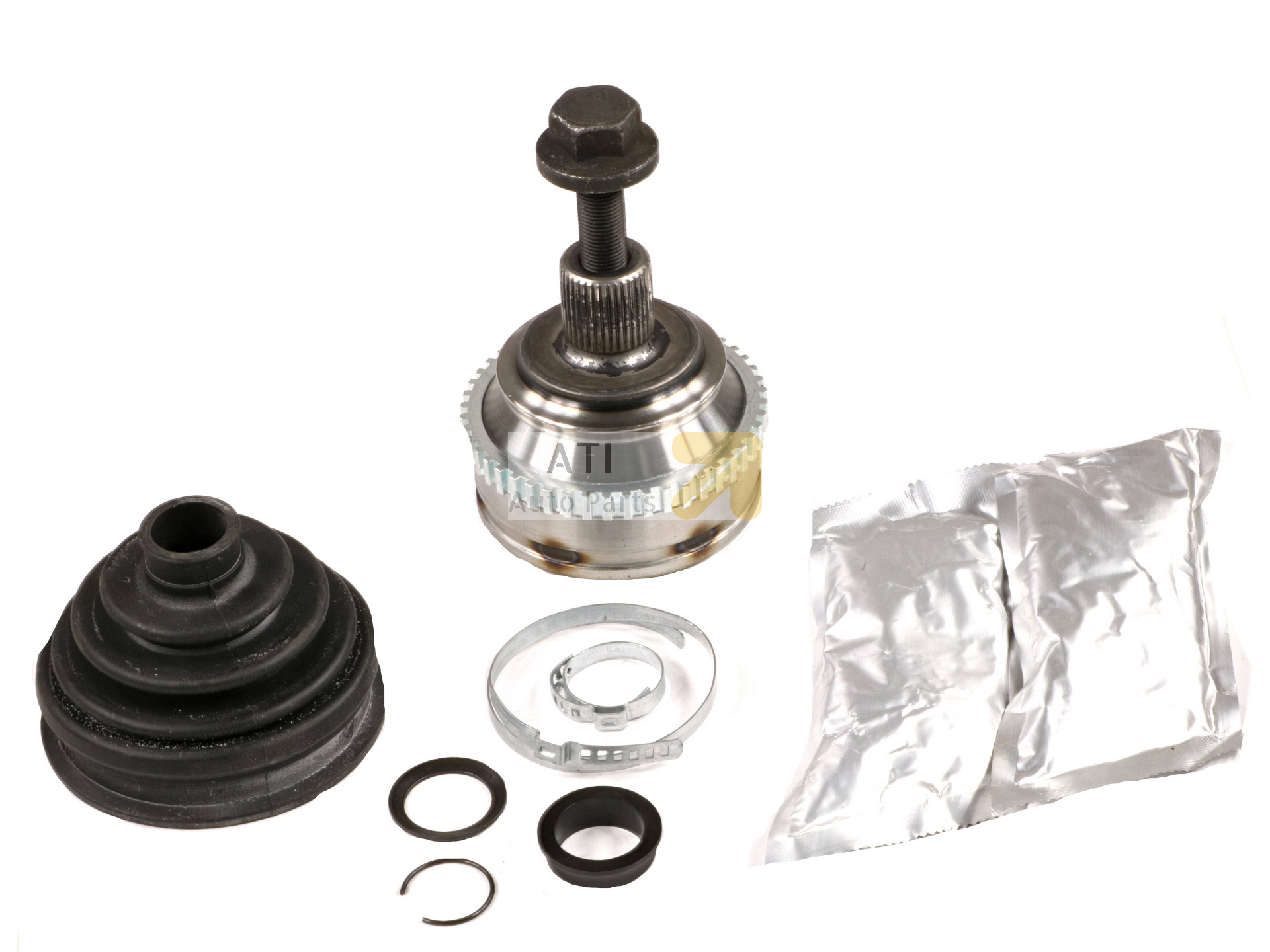

| JOINT HOMO Echange 22 | COTE ROUE | JHW2748 |
|
| JHW3248 |
|
||
| JHW2748 |
|
||
| JHW3248 |
|
||
| COTE BOITE | FLH32 |
|
|
| FLH27 |
|
||
| FLH32 |
|
||
| FLH27 |
|
||
| FIXATION | COTE ROUE | VIH003 |
|
| COURONNE ABS | COUH035 |
|
|
| BAGUE ETANCHEITE FIFF. | BA4560 |
|
Equivalence to manufacturer references
VOLKSWAGEN : 701407449JX
AUDI : 701407449JX
VOLKSWAGEN : 701407271AC
VOLKSWAGEN : 701407271J
VOLKSWAGEN : 701407449AX
VOLKSWAGEN : 701407451CX
VOLKSWAGEN : 701407271C
VOLKSWAGEN : JZW407449JX
VOLKSWAGEN : 701407451C
VOLKSWAGEN : 701407449CX
VOLKSWAGEN : 701407271Q
VOLKSWAGEN : 701407271JX
VOLKSWAGEN : 701407271JV
VOLKSWAGEN : 701407271CX
SKODA : 701407451C
SKODA : 701407449CX
SKODA : 701407271Q
SKODA : 701407271JX
SKODA : 701407271JV
SKODA : 701407271CX
SEAT : 701407451C
SEAT : 701407449CX
SEAT : 701407271Q
SEAT : 701407271JX
SEAT : 701407271JV
SEAT : 701407271CX
AUDI : 701407451C
AUDI : 701407449CX
AUDI : 701407271Q
AUDI : 701407271JX
AUDI : 701407271JV
AUDI : 701407271CX
