Category :
Transmission
Ref : 20897
Family :TR
Compressed length : 650 mm
ABS on the vehicle : Yes
COTE BOITE
Diameter (big) : 80 mm
Diameter (little) : 28.5 mm
Seal seat diameter : 34 mm
Outer spline diameter : 31 mm
Bearing roller diameter : 48.5 mm
Housing diameter : 84 mm
Beads thickness : 12.5 mm
Height : 24 mm
Length : 96 mm
Length of the gearbox output without seal seat : 63 mm
Number of splines : 29
Number of external splines : 30
Type of material : Neoprene
COTE ROUE
Diamètre (grand) : 94 mm
Diamètre (petit) : 29 mm
Diamètre des cannelures extérieures : 30 mm
Diamètre du bol : 102 mm
Shoulder diameter : 56 mm
Longueur : 149 mm
Nombre de cannelures extérieures : 29
Number of splines on inner race : 36
Number of grooves : 1
Type de matière : NÉOPRÈNE
Type and position (snap ring/circlip) : Internal snap ring

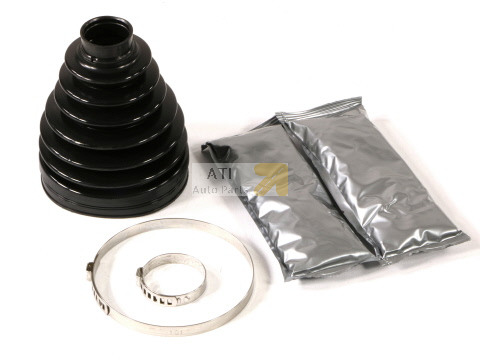

| Sealing kit | COTE ROUE | ST3140 |
|
| S5036 |
|
||
| COTE BOITE | S6182 |
|
|
| CV joint | COTE ROUE | JHN97 |
|
| Tripod joint | COTE BOITE | ATTRIN97 |
|
| Fixation | ATEC047 |
|
Equivalence to manufacturer references
RENAULT : 39101JY04A
