Category :
Transmission
Equivalence to manufacturer references
-
AUDI : 8D0407271AP
-
AUDI : 8D0407271BA
-
AUDI : 8D0407271DL
-
AUDI : 8D0407451V
-
AUDI : 8D0407451X
-
AUDI : 8D0407453AX
-
AUDI : 8E0501203BX
-
OPEL : 4406218
-
OPEL : 4409210
-
OPEL : 4413397
-
OPEL : 4414517
-
OPEL : 4430547
-
OPEL : 7711135189
-
OPEL : 91166708
-
OPEL : 91168795
-
OPEL : 93852699
-
OPEL : 93856470
-
OPEL : 93866081
-
RENAULT : 391018828R
-
RENAULT : 8200069147
-
RENAULT : 8200179212
-
RENAULT : 8200485589
-
RENAULT TRUCKS : 8200334338
-
SEAT : 8D0407271AP
-
SEAT : 8D0407451V
-
SEAT : 8D0407451X
-
SKODA : 8D0407271AP
-
SKODA : 8D0407451V
-
SKODA : 8D0407451X
-
VAUXHALL : 93866081
-
VOLKSWAGEN : 8D0407271PAP
-
VOLKSWAGEN : 8E0501203BX
-
VOLKSWAGEN (SVW) : 8D0407271AP
-
VOLKSWAGEN (SVW) : 8D0407451V
-
VOLKSWAGEN (SVW) : 8D0407451X

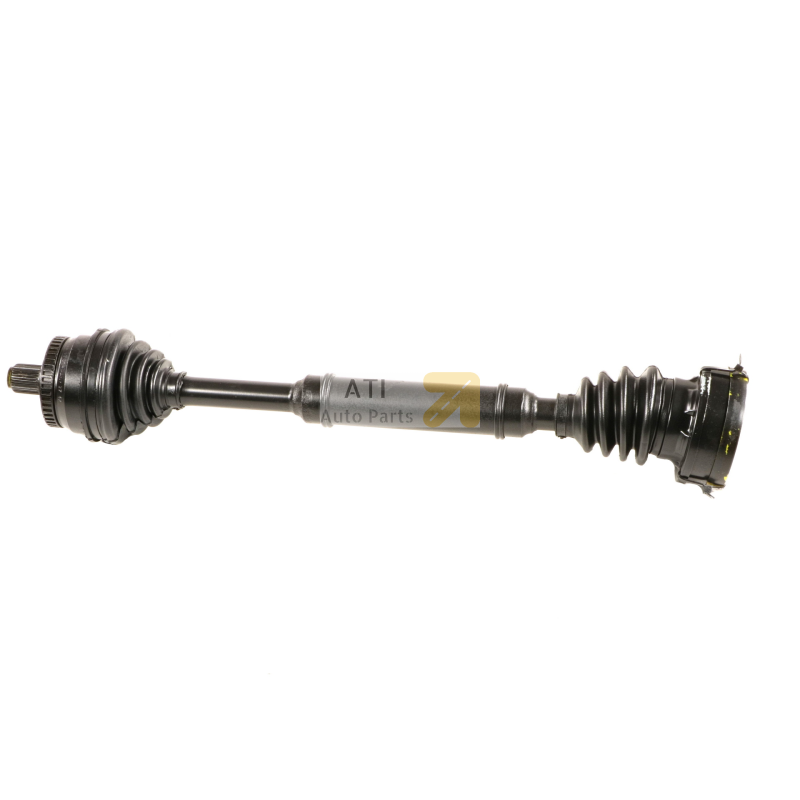

AUDI G
Ref : 32761
Family :TR
Round flange diameter 1 : 100 mm
Collapsed length : 620 mm
ABS on the vehicle : Yes
COURONNE ABS COTE ROUE
Outer diameter : 81 mm
Inner diameter : 77 mm
Width : 11 mm
Number of teeth : 45
FIXATION COTE ROUE
Nut type : Washer
JOINT HOMOCINETIQUE COTE ROUE
Outer spline diameter : 26.5 mm
Housing diameter : 88 mm
Shoulder diameter : 53 mm
Number of external splines : 33
Number of splines on inner race : 30
Type and position (snap ring/circlip) : Internal snap ring
JOINT HOMOCINETIQUE GENERAL
Mounting hole diameter : 10 mm
Outer diameter (boot side) : 100 mm
Flange thickness : 34 mm
Nombre de cannelures sur la noix : 33
Number of mounting points : 6
SOUFFLET COTE ROUE
Diameter (big) : 83 mm
Diameter (little) : 22 mm
Length : 79 mm
Number of grooves : 1
Type of material : Neoprene
| CV joint | GENERAL | FLH97 |
|
| COTE ROUE | JHA79 |
|
|
| Sealing kit | COTE ROUE | ST3049 |
|
| S5005 |
|
||
| COTE BOITE | S6018 |
|
|
| ST5009 |
|
||
| Fixation | COTE ROUE | VIH005 |
|
| ABS ring | COUH033 |
|
